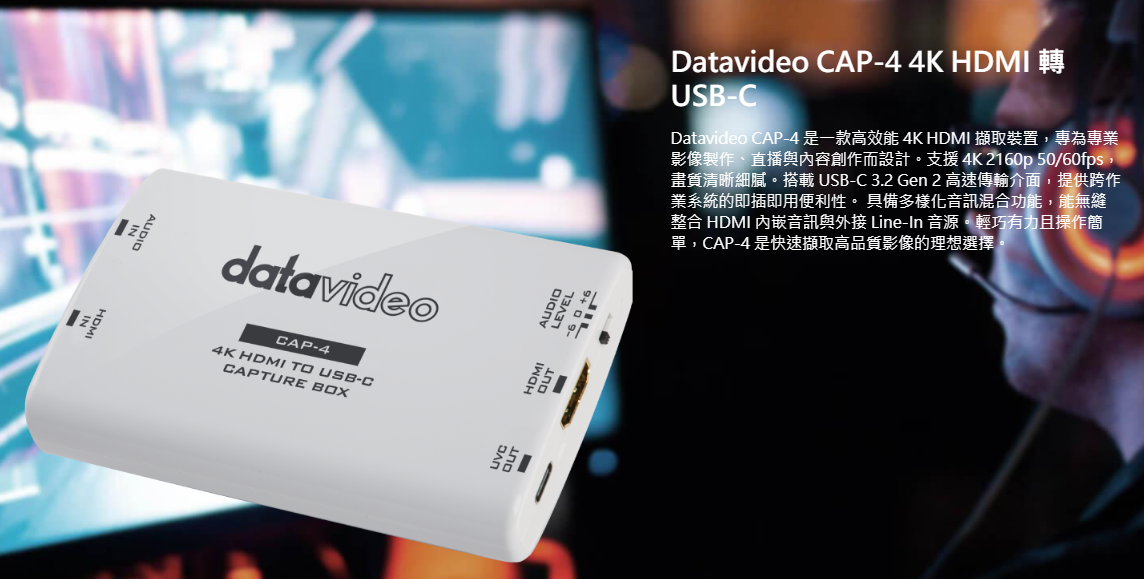

Datavideo CAP-4 4K HDMI 轉 USB-C 擷取盒｜高畫質直播擷取 影像轉換盒 即插即用
商品介紹
型號
CAP-4

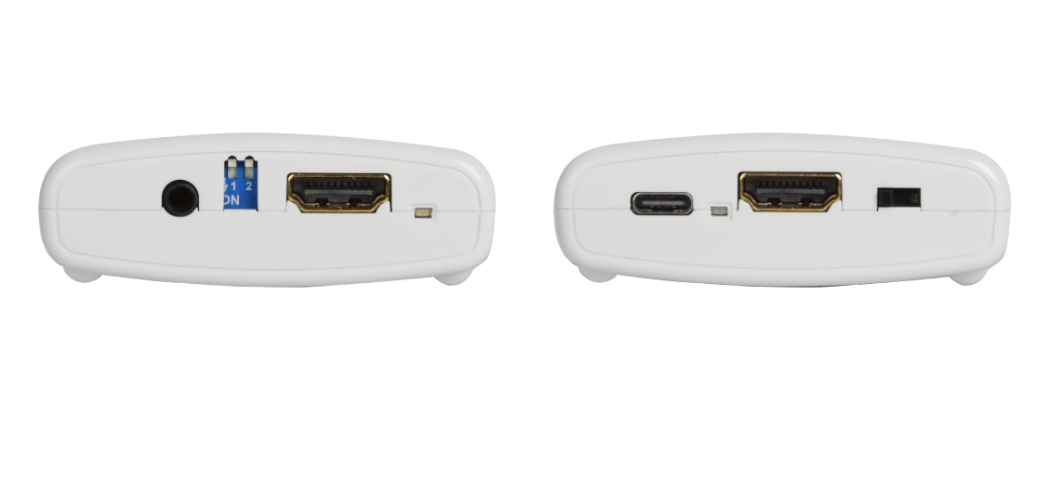

輸入
1x HDMI
輸出
1x USB 3.2 Gen (Type-C)
1x HDMI Loop through
輸入影像帶寬
Up to FRL 6 (48G)
輸出影像帶寬
USB-C: Up to 10 Gbps
HDMI: Up to FRL 6 (48G)
輸入影像格式
3840 x 2160p: 60/59.94/50/30/29.97/25
2560 x 1440p: 60/59.94/50/30/29.97/25
1920 x 1080p: 120
1920 x 1080p: 60/59.94/50/30/29.97/25
1280 x 720p: 60/59.94/50
輸出影像格式
USB-C:
3840 x 2160p: 60/59.94/50/30/29.97/25
2560 x 1440p: 60/59.94/50/30/29.97/25
1920 x 1080p: 120
1920 x 1080p: 60/59.94/50/30/29.97/25
1280 x 720p: 60/59.94/50/30/29.97/25
HDMI:
3840 x 2160p: 60/59.94/50/30/29.97/25
2560 x 1440p: 60/59.94/50/30/29.97/25
1920 x 1080p: 120
1920 x 1080p: 60/59.94/50/30/29.97/25
1280 x 720p: 60/59.94/50
聲音輸入
HDMI Embedded Audio (2-channel)
3.5mm stereo Line input
聲音格式
Input:
• 16/24 bits, 2-Channels,
• 44.1KHz and 48KHz sample rate
Output:
• up to 24-bit PCM, fixed 48KHz output
擷取影像格式
RGB/YUY2/NV12/I420/P010/MJPEG (USB 3.2 Gen 2)
MJPEG/YUY2/NV12/I420/ (USB2.0)
韌體升級
Via USB Port
軟體兼容性
•Windows: AMcap, Google Meet, OBS (Open Broadcast Software), TeamViewer, Xsplit Broadcaster, Zoom.us, Potplayer
•Linux: VLC, OBS
•MAC OS: OBS, VLC
支援OS
•Windows 10 x64 or above
•MacOS High Sierra 10.13 or above
•Linux OS
電源提供
Via USB Port
電源
Under 4.5W
工作溫度
0~40°C
儲存溫度
-20~60°C
濕度
20~90% RH (no condensation)
最低系統要求
•PC or Notebook Basic Interface Requirements (Recommanded):
USB 3.2 Gen 2x1 Type C or Type A; HDMI 2.0
• Windows Operating System: Windows® 10 x64 or above
1. USB must support UVC protocol, meet 4Kp30 protocol requirements;
HDMI must support 4Kp60 HDR
2. Intel® Core™ i3-8XXX or above
3. NVIDIA® GeForce® GTX 1060 or above
4. 16 GB RAM (*dual-channel)
• Mac Operating System: MacOS High Sierra 10.13 or above
1. USB must support UVC protocol, meet 4Kp30
protocol requirements; HDMI must support 4Kp60 HDR
2. iMac:
a) 3.6GHz Quad-Core Intel Core i7
b) Radeon Pro 555 (2GB of VRAM)
c) 16GB 2400MHz DDR4 Memory
3. MacBook Pro:
a) 2.8GHz Quad-Core Intel Core i7
b) Radeon Pro 555X (2GB GDDR5 Memory)
c) 16GB 2400MHz DDR4 Memory
尺寸(LxDxH)
105 x 68 x 23 mm
重量
75g
1 x CAP-4
1 x USB 3.0 Cable
規格說明
型號
CAP-4
輸入
1x HDMI
輸出
1x USB 3.2 Gen (Type-C)
1x HDMI Loop through
輸入影像帶寬
Up to FRL 6 (48G)
輸出影像帶寬
USB-C: Up to 10 Gbps
HDMI: Up to FRL 6 (48G)
輸入影像格式
3840 x 2160p: 60/59.94/50/30/29.97/25
2560 x 1440p: 60/59.94/50/30/29.97/25
1920 x 1080p: 120
1920 x 1080p: 60/59.94/50/30/29.97/25
1280 x 720p: 60/59.94/50
輸出影像格式
USB-C:
3840 x 2160p: 60/59.94/50/30/29.97/25
2560 x 1440p: 60/59.94/50/30/29.97/25
1920 x 1080p: 120
1920 x 1080p: 60/59.94/50/30/29.97/25
1280 x 720p: 60/59.94/50/30/29.97/25
HDMI:
3840 x 2160p: 60/59.94/50/30/29.97/25
2560 x 1440p: 60/59.94/50/30/29.97/25
1920 x 1080p: 120
1920 x 1080p: 60/59.94/50/30/29.97/25
1280 x 720p: 60/59.94/50
聲音輸入
HDMI Embedded Audio (2-channel)
3.5mm stereo Line input
聲音格式
Input:
• 16/24 bits, 2-Channels,
• 44.1KHz and 48KHz sample rate
Output:
• up to 24-bit PCM, fixed 48KHz output
擷取影像格式
RGB/YUY2/NV12/I420/P010/MJPEG (USB 3.2 Gen 2)
MJPEG/YUY2/NV12/I420/ (USB2.0)
韌體升級
Via USB Port
軟體兼容性
•Windows: AMcap, Google Meet, OBS (Open Broadcast Software), TeamViewer, Xsplit Broadcaster, Zoom.us, Potplayer
•Linux: VLC, OBS
•MAC OS: OBS, VLC
支援OS
•Windows 10 x64 or above
•MacOS High Sierra 10.13 or above
•Linux OS
電源提供
Via USB Port
電源
Under 4.5W
工作溫度
0~40°C
儲存溫度
-20~60°C
濕度
20~90% RH (no condensation)
最低系統要求
•PC or Notebook Basic Interface Requirements (Recommanded):
USB 3.2 Gen 2x1 Type C or Type A; HDMI 2.0
• Windows Operating System: Windows® 10 x64 or above
1. USB must support UVC protocol, meet 4Kp30 protocol requirements;
HDMI must support 4Kp60 HDR
2. Intel® Core™ i3-8XXX or above
3. NVIDIA® GeForce® GTX 1060 or above
4. 16 GB RAM (*dual-channel)
• Mac Operating System: MacOS High Sierra 10.13 or above
1. USB must support UVC protocol, meet 4Kp30
protocol requirements; HDMI must support 4Kp60 HDR
2. iMac:
a) 3.6GHz Quad-Core Intel Core i7
b) Radeon Pro 555 (2GB of VRAM)
c) 16GB 2400MHz DDR4 Memory
3. MacBook Pro:
a) 2.8GHz Quad-Core Intel Core i7
b) Radeon Pro 555X (2GB GDDR5 Memory)
c) 16GB 2400MHz DDR4 Memory
尺寸(LxDxH)
105 x 68 x 23 mm
重量
75g
1 x CAP-4
1 x USB 3.0 Cable
